... or other tall buildings.
Everyone knows the red warning lights located on tall buildings. These are called obstruction lights and are meant to warn air traffic about buildings exceeding a particular hight - especially in areas near to airports. A model reproduction of these red lights is an effective supplement to a layout's illumination at night. F.i. at a smoke stack or on top a water tower's spire.
The integration into a building
without visible "electrical installation" mainly is nothing but a matter of the employed materials. In the examples shown, standard LEDs with a diameter of 3mm were used. The connection terminals were shortened (2mm) and enamel-insulated wires were soldered to them. To immitate a housing, a small amount of a methacrylate based glue (f.i. "Stabilit Express" by Henkel) is suitable. It can be painted in grey or black, after drying.

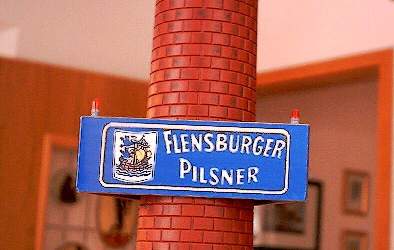

A hidden cable routing at the smoke stack goes without saying.

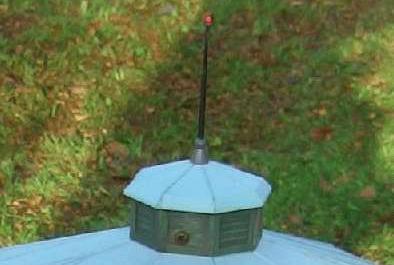

The water tower's spire was drilled through from both its ends
using a long 1.5mm drill. Electronics were placed under the tower's

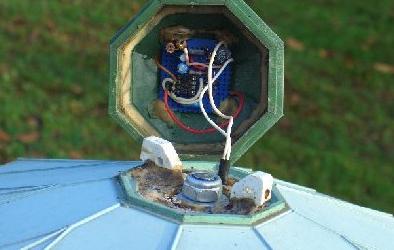

little roof and inside the building under the smoke stack.
A protection against atmospheric influences can be achieved by
potting the boards. The picture on the left shows that I refrained
from the latter.

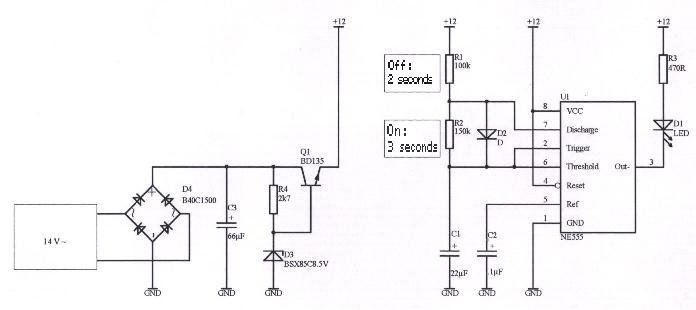

The wiring diagram below shows the operating principle using a commercial timer (NE555). Flash sequence and ratio are detemined by R1 and R2. The part on the left is necessary only if AC power will be supplied.
